Primary Reformer Used Hydrocarbons Steam Reforming Catalyst From NG to LPG SMR Catalyst
Name: Hydrocarbon Reforming Catalyst | |
Model: TYC-28Q | |

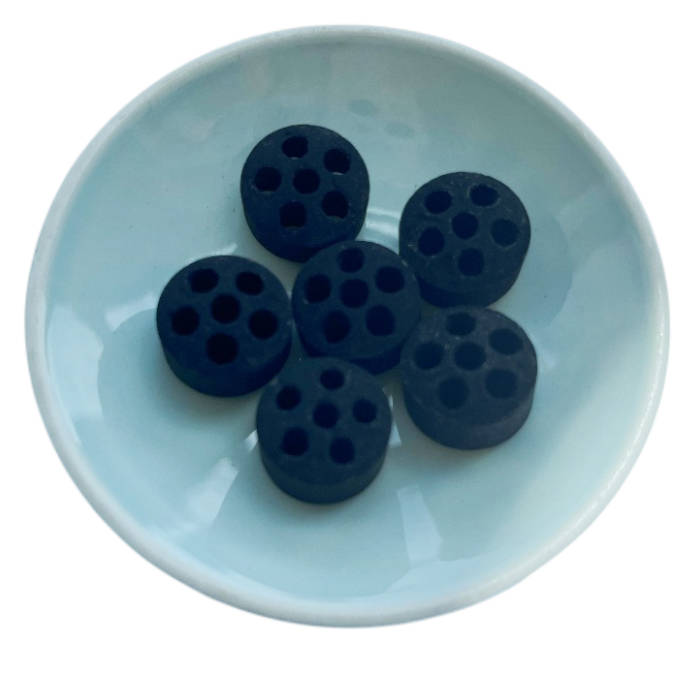

Outer appearance and shape | gray-black 6-holes honeycomb; Φ16×9mm |
Specific gravity | 0.85kg/L |
Average radial crushing strength | ≥ 300N/pc |
Chemistry composition | NiO≥14 wt.%, CaO 5~10 wt.%, additives, aluminum calcium balance |
Inlet gas temperature | 430～650℃ |
Outlet gas temperature | 600～980℃ |
Steam/carbon ratio： | 2.2～5.0 |
TYC-28Q hydrocarbon reforming catalyst is sintered type steam-reforming catalyst for gaseous hydrocarbon, with nickel as their active ingredient, alumina as their support, rare earth oxide and basic oxide as its promoters.
A more reasonable appearance structure to improve the strength and outer surface area;
A more reasonable microporous structure to improve the effective utilization of the inner surface area;
Adding rare earth oxides and basic oxides as promoters to improve the catalyst activity at low temperature and anti-carbon formation ability.
